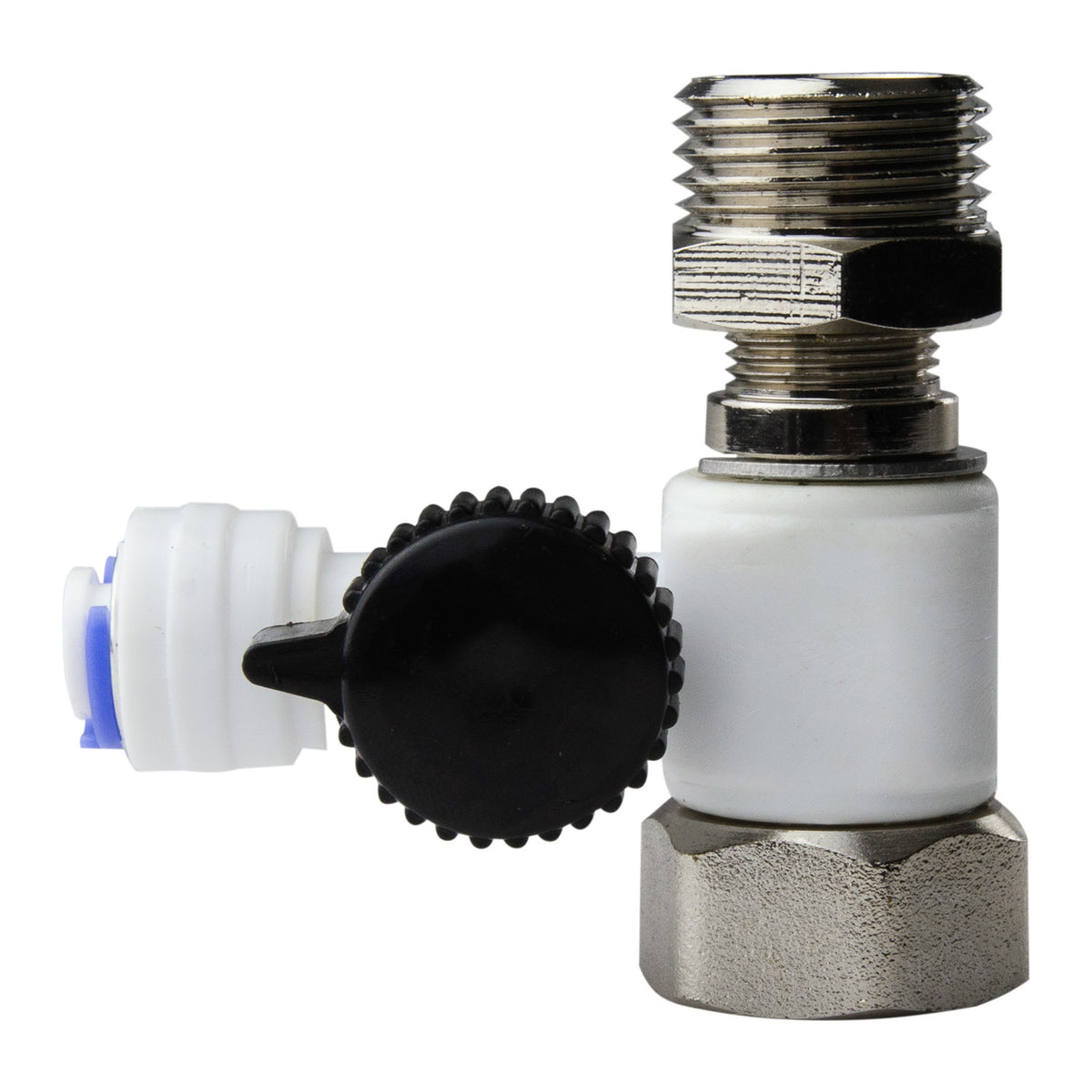

iSpring AFW43 Feed water adapter, Sliver
Ceramic valve disk for up to 1 million leak-free smooth turns
Washer included
No tools required for installation
Couldn't load pickup availability
Features

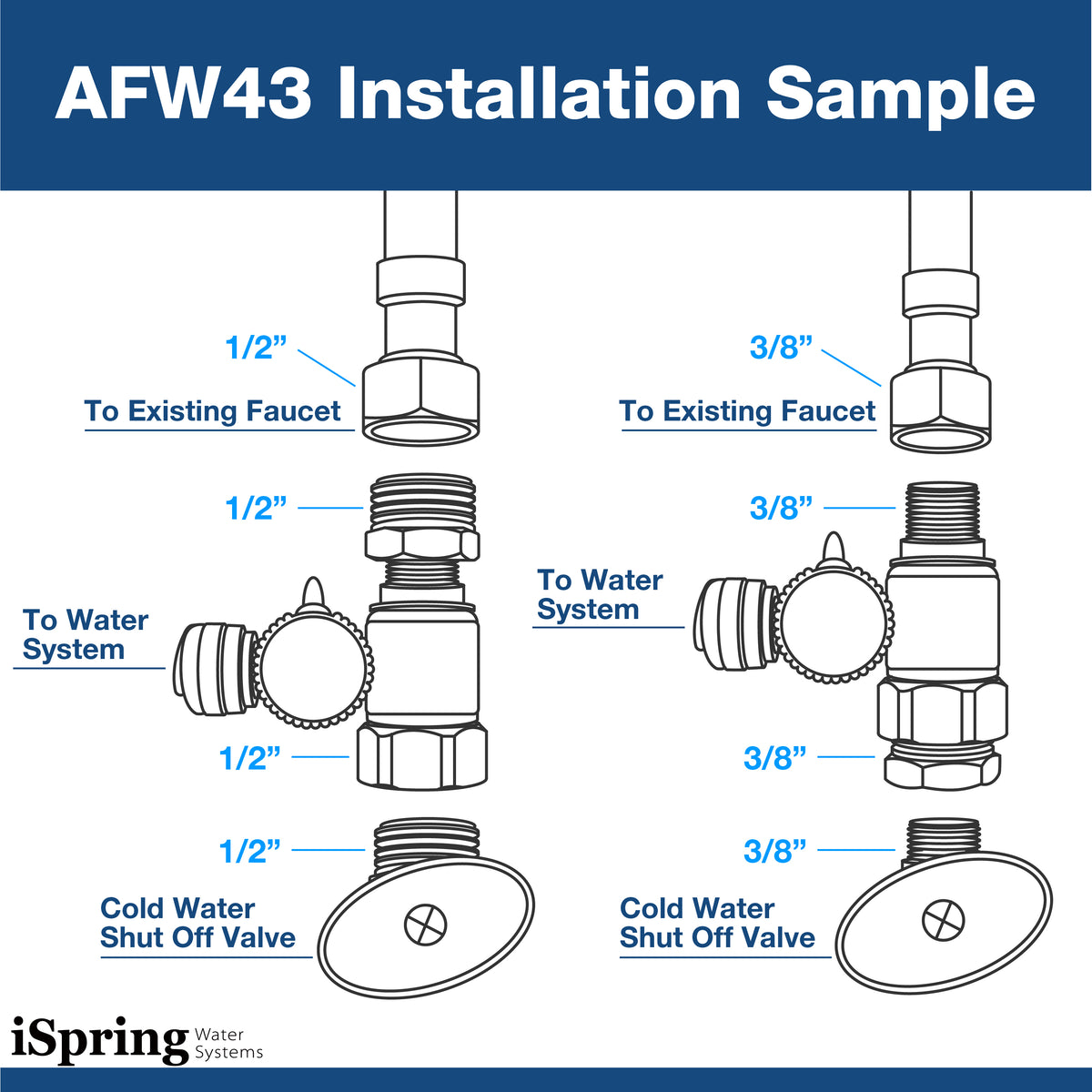

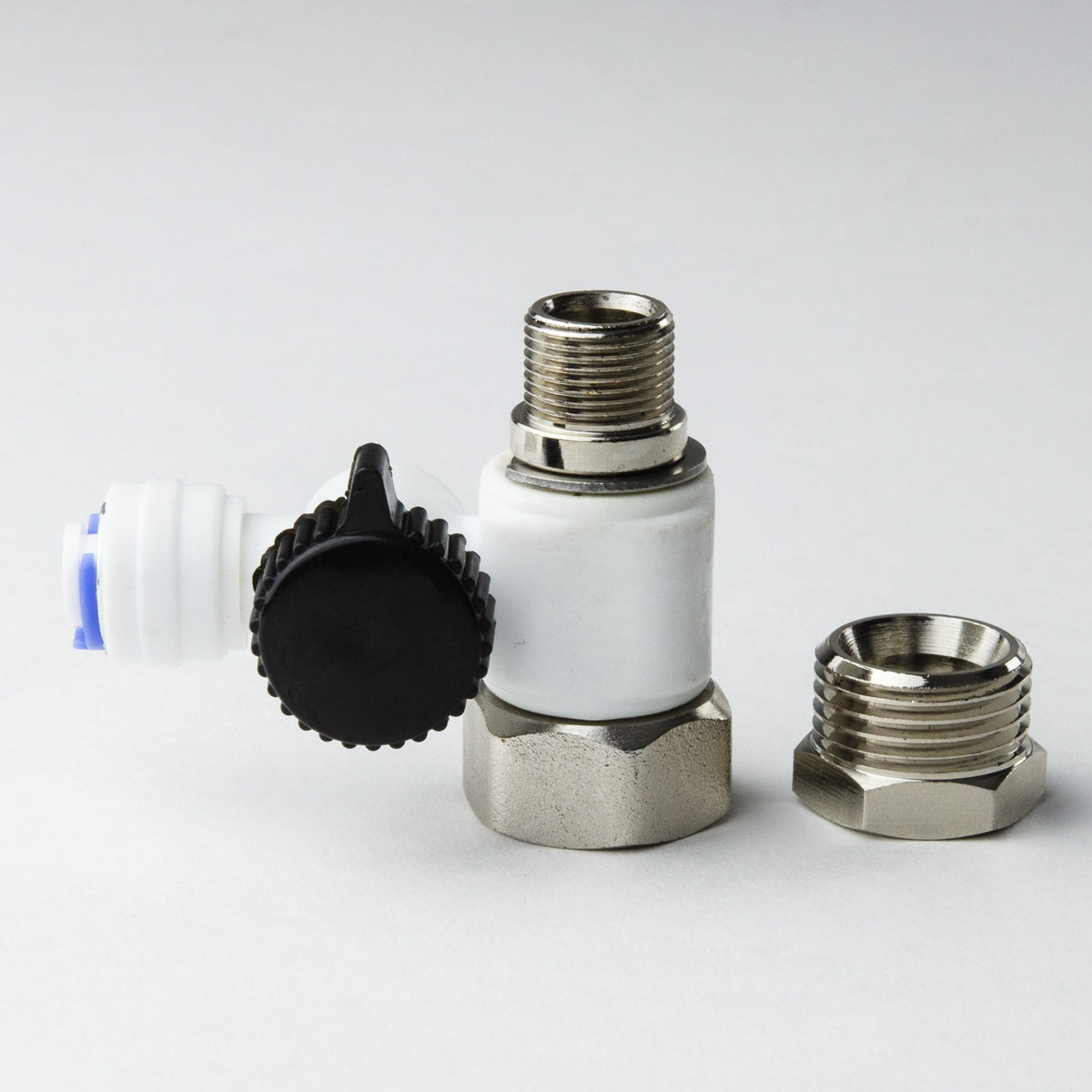

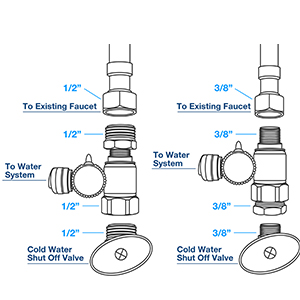

The iSpring Feed Water Adapter connects between the Cold Water Supply multi-turn angle valve and the flexible riser pipe, to the Main Water Supply, for applications in reverse osmosis filtration systems, automatic coffee brewers, ice makers and many more. The included Conversion Adapter (busing) can be threaded onto either side of the valve to make the configuration of 3/8 inch x 3/8 inch comp or 1/2 inch x 1/2 inch NPT.
INSTALLATION:
1. Turn off the Cold Water shut-off Valve.
2. Turn on the Faucet to release any pressure. Disconnect the Existing Faucet Connector Pipe.
3. Make sure the O-ring is seated inside the Feed Water Adapter female end then Twist it onto the Cold Water Supply Valve.
4. Twist the Existing Faucet Connector onto the male end of the Feed Water Adapter.
5. Turn off the Feed Water Valve. Turn on the Cold Water Supply Valve slowly, ensure you are getting a proper seal.
6. Connect the 1/4” tubing to the push-fit side of the Feed Water Adapter. Open valves and check for leaks.
- AvailabilityIn Stock
- Model AFW43
- Manufacturer iSpring
- Product Dimensions 7.0"L x 9.0"W x 2.0"H
- Product Weight 0.23 LB
